What Are Hydraulic Pipe Fittings?
Hydraulic pipe fittings are specialized connectors used in hydraulic systems to join pipes, tubes, hoses, and other components. These fittings ensure a secure and leak-free connection, allowing the controlled flow of hydraulic fluids (such as oil or water) through the system. Hydraulic pipe fittings are designed to withstand high-pressure environments and are critical for the performance, efficiency, and safety of hydraulic machinery and equipment.
Why Are Hydraulic Pipe Fittings Important?
Hydraulic pipe fittings are vital for several reasons:
1. Safety: Hydraulic systems operate under high pressure, and improper or leaking connections can lead to accidents, system failures, or even catastrophic damage. Pipe fittings ensure the integrity of the system and prevent leaks.
2. Efficiency: A well-designed hydraulic system with high-quality fittings allows fluids to flow smoothly, reducing friction, energy loss, and ensuring that the system operates at its optimal pressure and flow rate.
3. Durability: Hydraulic pipe fittings are engineered to be durable and resistant to corrosion, wear, and extreme temperatures. This durability is essential for the longevity and performance of hydraulic equipment, especially in harsh industrial environments.
4. Flexibility: The wide variety of hydraulic pipe fittings allows engineers to design systems that meet specific needs, including different pipe sizes, pressure ratings, and fluid types.
What Are the Different Types of Hydraulic Pipe Fittings?
Hydraulic pipe fittings come in many different types, each designed for specific applications. The most common types include:
1. Threaded Fittings: These fittings use threads to connect pipes or tubes. They are widely used in smaller hydraulic systems or systems with relatively low pressure. Examples include:
- NPT (National Pipe Thread): A tapered thread used to create a tight seal.
- BSP (British Standard Pipe): A parallel thread fitting commonly used in Europe.
2. Flanged Fittings: Flanged fittings are designed with a flat surface that allows them to be bolted together. These fittings are often used in larger hydraulic systems and in applications that require high-pressure resistance. Common types include:
- ANSI Flanges: Standard flanged fittings used in large industrial systems.
- DIN Flanges: Common in Europe, used for various pressure ratings and pipe sizes.
3. Compression Fittings: These fittings use a compression ring or ferrule to create a seal around the pipe or tube. Compression fittings are typically used for high-pressure systems and provide a reliable connection without the need for welding or brazing.
4. Push-On Fittings: Push-on fittings are quick-connect fittings that do not require tools for installation. They are commonly used for applications where frequent assembly and disassembly are needed, such as in agricultural or mobile hydraulic systems.

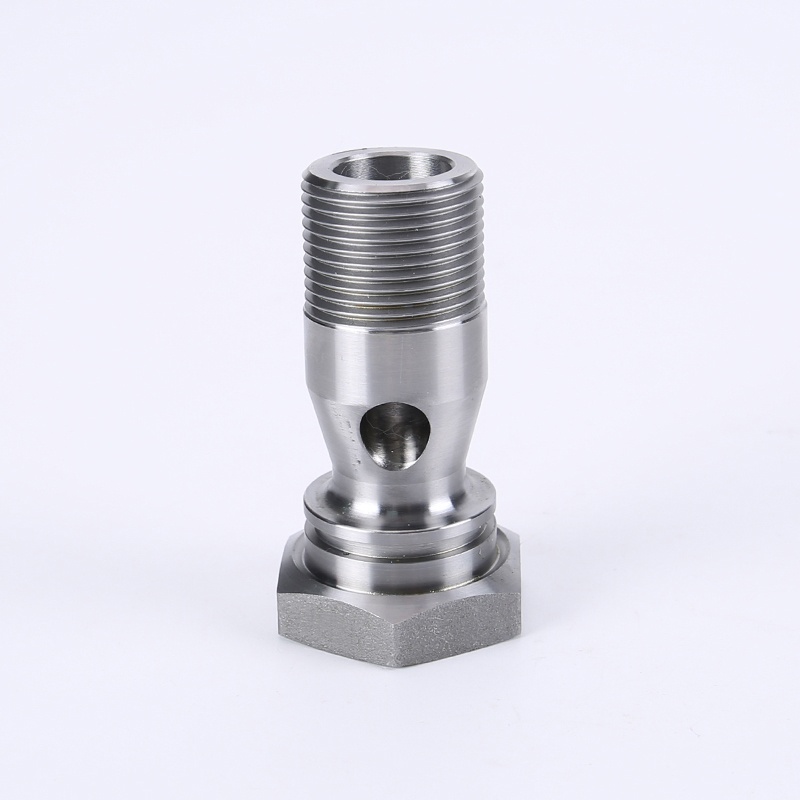

5. Banjo Fittings: Banjo fittings are unique in that they have a flat, ring-shaped design that allows the fluid to flow in multiple directions. They are often used in applications where space is limited.
6. Quick-Connect Fittings: These are used in systems where quick and easy connection and disconnection of hydraulic hoses are required. They are common in mobile machinery, agricultural equipment, and industrial applications.
What Materials Are Hydraulic Pipe Fittings Made From?
Hydraulic pipe fittings are made from materials that can withstand high-pressure, high-temperature environments. Common materials include:
1. Steel: Carbon steel and stainless steel are the most commonly used materials for hydraulic pipe fittings. Stainless steel, in particular, is resistant to corrosion, making it ideal for hydraulic systems exposed to moisture or chemicals.
2. Brass: Brass fittings are often used in lower-pressure hydraulic systems. They are corrosion-resistant and provide a good balance of strength and ease of machining.
3. Aluminum: Aluminum is lightweight and corrosion-resistant, making it ideal for applications where weight is a concern, such as in aerospace or mobile machinery.
4. Plastic: In some lower-pressure or non-industrial systems, plastic hydraulic fittings may be used. These are generally used in lighter-duty applications and provide cost-effective solutions.
How Do I Choose the Right Hydraulic Pipe Fitting for My System?
Choosing the right hydraulic pipe fitting depends on several factors. Here’s what to consider:
1. Pressure Rating: Ensure that the fitting can handle the pressure levels of your system. Some fittings are rated for high-pressure systems, while others are suited for lower-pressure environments.
2. Fluid Type: The type of hydraulic fluid used in your system (e.g., water, oil, or synthetic fluids) may influence the material choice for the fitting. Some fluids, like certain chemicals, can degrade specific materials like brass or plastic.
3. Pipe Size: Hydraulic pipe fittings are available in a range of sizes, so you must select a fitting that matches the pipe or hose diameter and the pressure required. A mismatch could lead to leaks or system failure.
4. Connection Type: Depending on your system’s design, you may need threaded, flanged, or push-on fittings. Choose the connection type based on your system's assembly and the ease of installation required.
5. Environmental Conditions: If your hydraulic system will be exposed to extreme temperatures, vibrations, or corrosive environments, choose materials like stainless steel or specialized coatings to ensure durability and performance.
How Do I Properly Install Hydraulic Pipe Fittings?
Proper installation of hydraulic pipe fittings is critical to ensure a leak-free and safe system. Here are some general guidelines:
1. Cleanliness: Before installation, make sure the pipes, fittings, and threads are clean and free from debris, dirt, or rust. Contaminants can cause leaks or damage to the system.
2. Proper Torque: Tighten fittings to the manufacturer’s recommended torque specifications. Over-tightening can cause damage to the fittings, while under-tightening can lead to leaks.
3. Sealing: For threaded fittings, use appropriate sealing materials (such as PTFE tape or thread sealant) to prevent leaks. However, some fittings are designed to create their own seal, so make sure to follow the manufacturer’s instructions.
4. Check Alignment: Ensure the fittings and pipes are properly aligned to avoid stress on the connections. Misalignment can cause undue wear on the fittings and pipes, leading to failure.
5. Test the System: After installation, pressurize the system gradually and check for leaks. Inspect the fittings carefully for any signs of failure or leaks before starting full operation.
How Do I Maintain Hydraulic Pipe Fittings?
Proper maintenance ensures that hydraulic pipe fittings last longer and perform efficiently. Here are some maintenance tips:
1. Regular Inspections: Periodically check the fittings for signs of wear, corrosion, leaks, or damage. Tighten any loose connections and replace worn-out fittings.
2. Fluid Quality: Use the correct hydraulic fluid and monitor its quality. Contaminated fluid can damage both the fittings and other components in the system.
3. Cleanliness: Keep the fittings and surrounding areas clean to prevent dirt or debris from entering the system and causing blockages or leaks.
4. Seal and O-Ring Replacement: Replace seals and O-rings as they wear out, especially if they start showing signs of cracking or degradation. Worn seals can lead to leaks and reduced system performance.
Where Can I Buy Hydraulic Pipe Fittings?
Hydraulic pipe fittings can be purchased from a variety of sources, including:
1. Specialized Hydraulic Suppliers: Many companies specialize in hydraulic components and can provide a wide selection of pipe fittings for various applications.
2. Online Retailers: Websites like Amazon, Grainger, and MSC Industrial Supply offer a range of hydraulic fittings for both industrial and smaller-scale applications.
3. Local Industrial Supply Stores: Many local hardware and industrial supply stores carry hydraulic fittings, particularly for common systems or smaller equipment.
4. Manufacturers and OEMs: If you require custom fittings or need to replace parts for specific equipment, consider ordering directly from the manufacturer or authorized distributors.
Conclusion
Hydraulic pipe fittings are essential components in any hydraulic system, ensuring safe, reliable, and efficient operation. With a wide range of types, materials, and sizes available, choosing the right fitting for your system is crucial. By understanding the different types of hydraulic pipe fittings and their applications, you can make informed decisions to optimize the performance of your equipment, minimize downtime, and ensure long-term reliability. Proper installation and maintenance are key to keeping your hydraulic systems running smoothly, so always follow the manufacturer's recommendations for the best results.
