Features and applications of wire-wound resistors

2023-11-09

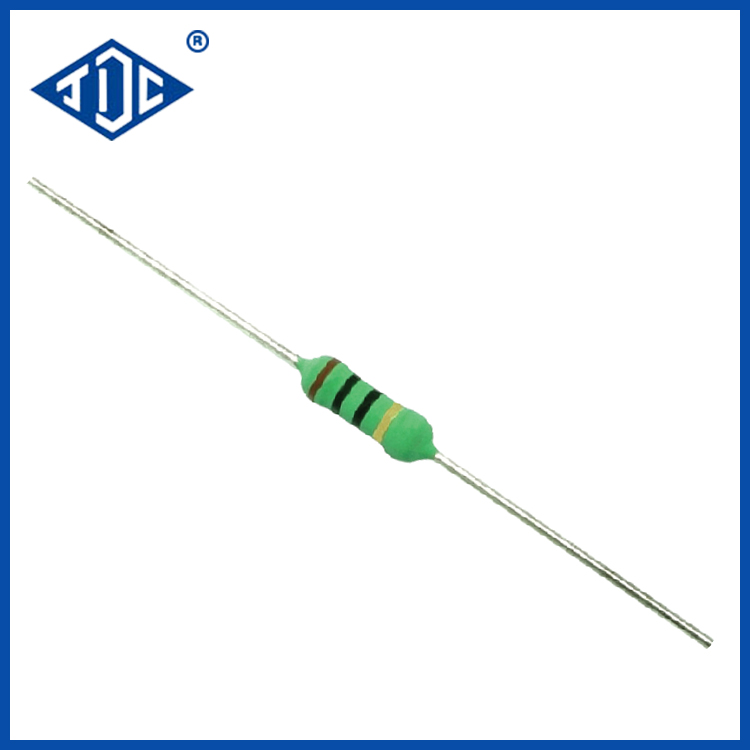

A wire-wound resistor is an electronic component used to limit or control the flow of electric current in a circuit by introducing electrical resistance. The name "wire-wound" comes from the resistor's construction, where a resistive wire is wound around an insulating core, which can be made of materials like ceramic, fiberglass, or plastic. Wire-wound resistors are known for their high precision, stability, and the ability to handle high power loads. Here are the key features and applications of wire-wound resistors:

Key Features:

1. Resistive Wire: The core of a wire-wound resistor is typically made of a ceramic or similar material, with a resistive wire (commonly made of nickel-chromium, copper-nickel, or similar alloys) wound around it. The length and diameter of the wire determine the resistance value.

2. High Precision: Wire-wound resistors offer precise resistance values, allowing for accurate control of current and voltage in circuits. They are available with tolerances as low as ±0.01%.

3. Power Handling: These resistors are designed to handle high power loads, making them suitable for applications that generate significant heat.

4. Temperature Coefficient: Wire-wound resistors often have a low temperature coefficient, meaning their resistance value changes only slightly with temperature variations.

5. Stability: They provide good long-term stability and reliability, with minimal drift in their resistance value over time.

6. Low Inductance: Wire-wound resistors are designed with low inductance, which makes them suitable for high-frequency applications.

Applications:

1. Power Electronics: Wire-wound resistors are commonly used in power electronics applications, such as power supplies, voltage regulators, and amplifiers, where they help manage high current and voltage levels.

2. Motor Control: In motor control circuits, wire-wound resistors are employed to limit current during startup and provide dynamic braking.

3. Heating Elements: They are used as heating elements in various industrial and household applications, such as electric stoves, ovens, and heating coils.

4. Load Banks: Wire-wound resistors are used in load banks to simulate electrical loads for testing and calibration purposes, often in industries like telecommunications and electrical power systems.

5. Aerospace and Defense: They are employed in aerospace and defense applications, where precision, reliability, and high power handling are crucial.

6. Medical Devices: Wire-wound resistors are used in medical equipment, including diagnostic devices, imaging systems, and laboratory instruments.

7. Wireless Communication: They can be found in RF (radio frequency) and microwave applications, where low inductance and precise resistance are important.

8. High-Precision Measurement: Wire-wound resistors are used in high-precision measurement and calibration equipment where precise resistance values are required.

Wire-wound resistors are valued in applications that demand precise resistance values, high power handling, and long-term stability. Their resistance values are accurately determined during manufacturing, and they can be customized to meet specific requirements. Wire-wound resistors play a critical role in controlling and managing electrical parameters in a wide range of electronic and electrical systems.
