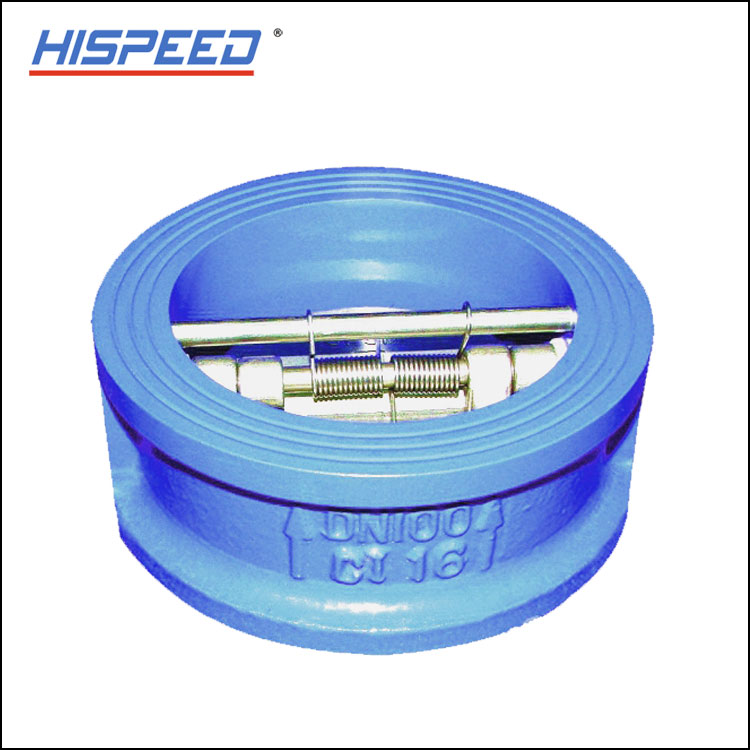

A wafer double door ductile iron check valve, also known as a dual plate wafer check valve, is a type of valve used in piping systems to prevent backflow of fluid. Here are some key points about this type of valve:
1. Material: The body of the valve is made of ductile iron, which provides strength, durability, and resistance to corrosion. This material is well-suited for various applications, including water supply, sewage systems, and industrial processes.
2. Design: The double door design features two spring-loaded plates or doors that swing open to allow forward flow of fluid and then quickly close to prevent backflow when the flow reverses. This design offers a quick response, minimal pressure drop, and reduced water hammer effects compared to other check valve designs.
3. Wafer Connection: The valve has a wafer-style connection, meaning it is designed to fit between two flanges in the pipeline without the need for additional flanges or support. This design minimizes space requirements and simplifies installation and maintenance.
4. Size and Pressure Rating: Wafer double door ductile iron check valves are available in various sizes and pressure ratings to accommodate different flow rates and pressure requirements of the system. It's essential to select the appropriate size and pressure rating based on the specific needs of the application.
5. Application: These valves are commonly used in applications where space is limited and quick response and reliable backflow prevention are essential, such as in HVAC systems, water distribution networks, and industrial processes.
6. Installation: The wafer design allows for easy installation between flanges in the pipeline. Proper alignment and support are important to ensure optimal performance and longevity of the valve.
7. Maintenance: Regular inspection and maintenance are necessary to ensure the proper functioning of wafer double door ductile iron check valves. This includes checking for any signs of wear or damage to the valve components, lubricating moving parts if required, and replacing worn-out parts as needed.
8. Cost: The cost of wafer double door ductile iron check valves may vary depending on factors such as size, pressure rating, and manufacturer. However, they generally offer good value for their performance, reliability, and ease of installation.
When selecting a wafer double door ductile iron check valve, it's important to consider factors such as the application requirements, operating conditions, flow characteristics, and compatibility with other components in the piping system to ensure effective and reliable operation.
