Understanding the Importance of Expansion Valves in HVAC Systems

2025-01-20

In the world of heating, ventilation, and air conditioning (HVAC), numerous components work together to ensure systems run smoothly and efficiently. Among these components, the expansion valve plays a crucial role in regulating the refrigerant flow and pressure within the system. Despite its importance, it’s often overlooked in everyday discussions. In this blog, we’ll delve into what expansion valves are, how they function, and why they are essential for the efficiency and performance of HVAC systems.


What Is an Expansion Valve?


An expansion valve is a key device in refrigeration and air conditioning systems, responsible for controlling the flow of refrigerant into the evaporator coil. This valve regulates the pressure and temperature of the refrigerant as it transitions from a high-pressure liquid to a low-pressure mixture of liquid and vapor. By doing so, the expansion valve ensures that the refrigerant evaporates efficiently within the evaporator coil, absorbing heat and cooling the surrounding air.


In simple terms, the expansion valve is the gatekeeper for the refrigerant, controlling how much enters the evaporator and when it enters. Without proper regulation, the refrigerant might either flood the evaporator (leading to inefficiency) or evaporate too early (leading to inadequate cooling).


How Does an Expansion Valve Work?


To understand how an expansion valve functions, it's important to grasp the basics of the refrigeration cycle. In this cycle, refrigerant is compressed, condensed, expanded, and evaporated:


1. Compression: The refrigerant gas is compressed by the compressor, increasing its pressure and temperature.

2. Condensation: The high-pressure, high-temperature gas is then cooled in the condenser coil, where it becomes a high-pressure liquid.

3. Expansion: The high-pressure liquid refrigerant flows into the expansion valve, where its pressure is reduced.

4. Evaporation: The low-pressure liquid refrigerant then enters the evaporator coil, where it evaporates and absorbs heat from the surrounding air, providing cooling.


The expansion valve is responsible for controlling the pressure drop between the high-pressure liquid refrigerant and the low-pressure refrigerant that enters the evaporator coil. The pressure drop causes the refrigerant to expand and partially evaporate, which is essential for the cooling process.


Types of Expansion Valves


There are several types of expansion valves used in HVAC and refrigeration systems, each with its own characteristics and applications:

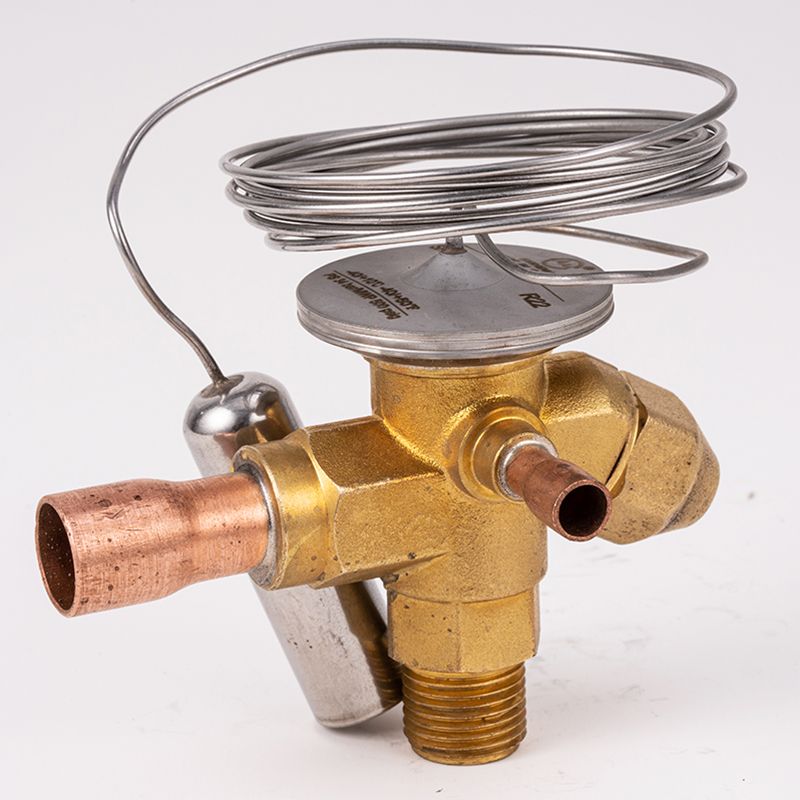

1. Thermal Expansion Valve (TXV)

  - Function: This is the most common type of expansion valve. It adjusts the refrigerant flow based on the temperature of the evaporator coil. A temperature-sensing bulb attached to the evaporator detects the temperature, and the valve adjusts the flow of refrigerant accordingly.

  - Advantages: Provides accurate control of refrigerant flow, making it ideal for systems with varying load conditions.

  - Applications: Widely used in air conditioners, refrigerators, and heat pumps.


2. Electronic Expansion Valve (EEV)

  - Function: This valve is controlled electronically, using sensors and a control system to regulate refrigerant flow. The EEV offers more precise control than the TXV, with the ability to adjust continuously based on system demands.

  - Advantages: Higher accuracy and more efficient control, especially in systems that require constant adjustment.

  - Applications: Common in modern HVAC systems, especially in commercial and industrial applications.


3. Capillary Tube

  - Function: A simple expansion device consisting of a small-diameter tube that causes a pressure drop as refrigerant flows through it. Unlike the TXV or EEV, it doesn’t have moving parts or a sensing bulb.

  - Advantages: Cost-effective and simple design.

  - Applications: Typically used in small refrigeration systems, like in household refrigerators and freezers.


4. Automatic Expansion Valve (AXV)

  - Function: The AXV maintains a constant evaporator pressure by regulating refrigerant flow. It is typically used in systems with a constant load.

  - Advantages: Simple and reliable, but less flexible than TXV and EEV.

  - Applications: Often used in small systems where refrigerant load remains fairly stable.


Why Is the Expansion Valve Important?


The expansion valve plays several critical roles in the overall efficiency and performance of HVAC systems:


1. Optimizing Refrigerant Flow

  By controlling the amount of refrigerant entering the evaporator, the expansion valve ensures that the system operates within optimal conditions. Too much refrigerant could lead to inefficient cooling and compressor damage, while too little refrigerant may result in poor cooling performance.


2. Energy Efficiency

  Efficient expansion of the refrigerant helps the system achieve the best possible heat transfer. When the refrigerant is regulated properly, the system consumes less energy to maintain desired temperatures, leading to lower operating costs and improved energy efficiency.


3. Protecting the Compressor

  The compressor is one of the most expensive components in an HVAC system. If the refrigerant flow is not properly regulated, the compressor can be subjected to excessive stress, leading to potential breakdowns. The expansion valve ensures that only the correct amount of refrigerant reaches the evaporator, preventing compressor damage.


4. Maintaining Comfort

  Whether it’s an air conditioning unit in a home or a large refrigeration system in an industrial setting, comfort is key. An improperly functioning expansion valve can lead to inconsistent cooling, fluctuating temperatures, or even system failure. By maintaining stable refrigerant flow, the expansion valve helps keep systems running smoothly and ensures a comfortable environment.


Common Issues with Expansion Valves


Like any component in a complex system, expansion valves can experience problems. Some common issues include:


- Clogging or Contamination: Dirt, debris, or oil from the system can clog the valve, impairing its function.

- Sticking or Failure to Open/Close: Mechanical or electrical failures in the valve can lead to improper refrigerant flow, reducing system efficiency.

- Improper Sizing: If the expansion valve is not properly sized for the system, it can lead to poor performance, either flooding the evaporator or causing refrigerant starvation.


Conclusion


Expansion valves are often small in size but incredibly important in maintaining the efficiency, performance, and longevity of HVAC and refrigeration systems. Whether it’s a thermal expansion valve, electronic expansion valve, or capillary tube, each type of expansion valve offers unique benefits that cater to specific system needs. By ensuring proper refrigerant flow and pressure regulation, expansion valves help optimize cooling, prevent damage to critical components, and improve overall system efficiency. Understanding their role in the refrigeration cycle is key to appreciating how HVAC systems keep our environments comfortable and efficient.
